Silicone gel dressing pasting and forming machine used for general surgery and wound protection in surgical surgery, namely, the advanced functions of automatic stripping, pasting, compounding, cutting, automatic waste collection after forming of adhesive tape, PU film, absorbent pad, stripping paper, release paper roll materials, etc.
overview
1. Silicone gel dressing pasting and forming machine used for general surgery and wound protection in surgical surgery, namely, the advanced functions of automatic stripping, pasting, compounding, cutting, automatic waste collection after forming of adhesive tape, PU film, absorbent pad, stripping paper, release paper roll materials, etc.
2. This machine adopts imported seven servo motors, motion controllers, and human-machine interfaces. The servo correction positioning accuracy is high, the operation is convenient, and the performance is stable.

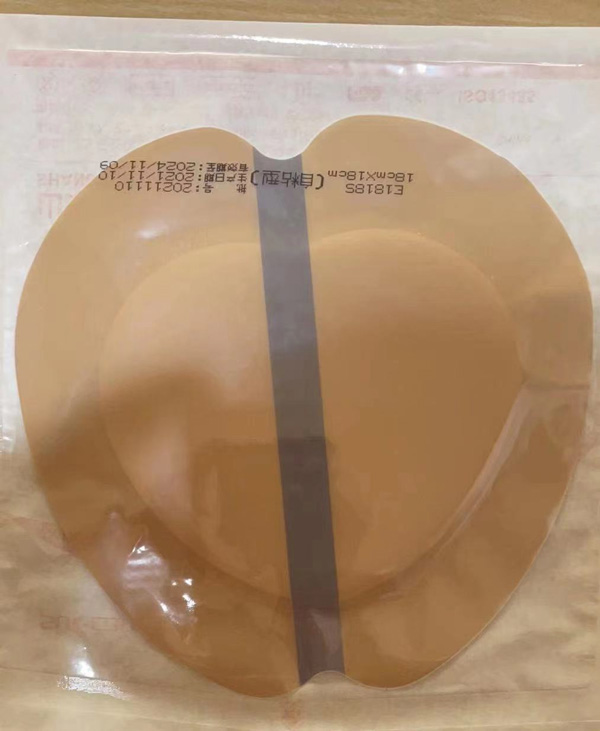

3. This machine can produce: PU dressing paste, silicon gel dressing paste, medical dressing paste, plaster paste, eye patch, etc.
characteristic
1. The water absorbing cotton forming knife group and the dressing outer forming knife group are controlled by servo motor traction, which improves the forming accuracy and ensures a more beautiful appearance of the finished product.
2. Dressing adhesive absorbent cotton forming knife roller.
3. The dressing is attached to the outer forming knife roller.
4. Packaging material unwinding and rewinding device and automatic tension system.
Technical Parameters
| Model | FLT-300B |
| Cutting speed | 30m/min |
| Cutting width | 100-300mm |
| Cutting length | 50-350mm |
| positioning accuracy | ±0.2mm |
| total power | 5kw |
| power supply | ~380V ± 10% 50Hz (three-phase four wire) |
| External dimensions | 4000(L)×1100(W)×1950(H)mm |
| Whole machine weight | 2Ton |
