A dressing shaping machine used in general surgery and surgical surgery to protect wounds, which has advanced functions such as automatic peeling, pasting, compounding, cutting, and automatic waste collection of adhesive tape, PU film, absorbent pad, peeling paper, and release paper roll shaped materials.
overview
1. A dressing shaping machine used in general surgery and surgical surgery to protect wounds, which has advanced functions such as automatic peeling, pasting, compounding, cutting, and automatic waste collection of adhesive tape, PU film, absorbent pad, peeling paper, and release paper roll shaped materials.
2. This machine adopts imported seven servo motors, motion controllers, and human-machine interfaces. The servo correction positioning accuracy is high, the operation is convenient, and the performance is stable.

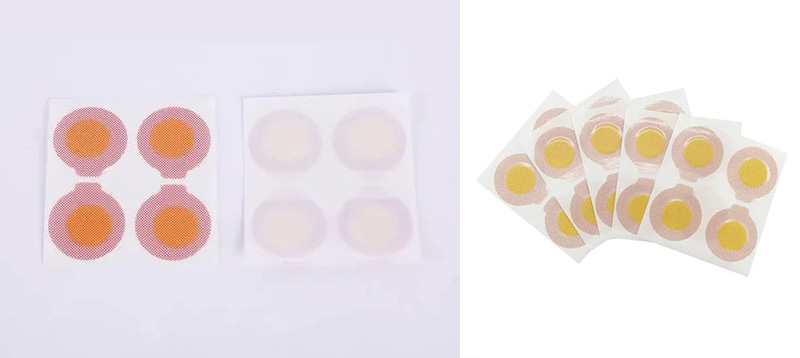

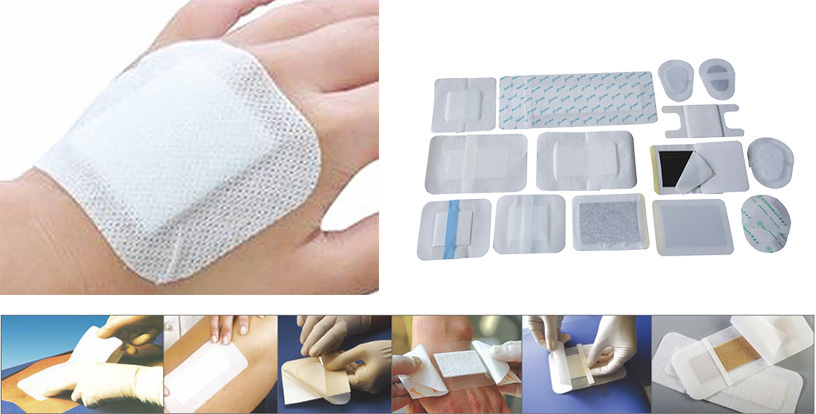

3. This machine can produce PU dressing adhesive, medical dressing adhesive, plaster adhesive, eye adhesive, flat mouth adhesive, etc.
characteristic
1. The water absorbing cotton forming blade group and the flat mouth external forming blade group are controlled by servo motor traction, which improves the forming accuracy and ensures a more beautiful appearance of the finished product.
2. Flat mouth adhesive absorbent cotton forming knife roller.
3. Flat mouth adhesive outer forming knife roller.
4. Packaging material unwinding and rewinding device and automatic tension system.
Technical Parameters
| Model | FLT-300B |
| Cutting speed | 30m/min |
| Cutting width | 100-300mm |
| Cutting length | 50-350mm |
| positioning accuracy | ±0.2mm |
| total power | 5kw |
| power supply | ~380V ± 10% 50Hz (three-phase four wire) |
| External dimensions | 4000(L)×1100(W)×1950(H)mm |
| Whole machine weight | 2Ton |
