The YAZ-120 fully automatic box packing machine is a high-tech product that integrates light, electricity, gas, and machinery. Suitable for automatic packaging of capsules, tablets, blister packs with aluminum-plastic packaging, bottles, ointments, and chemical (hardware) similar items.
overview

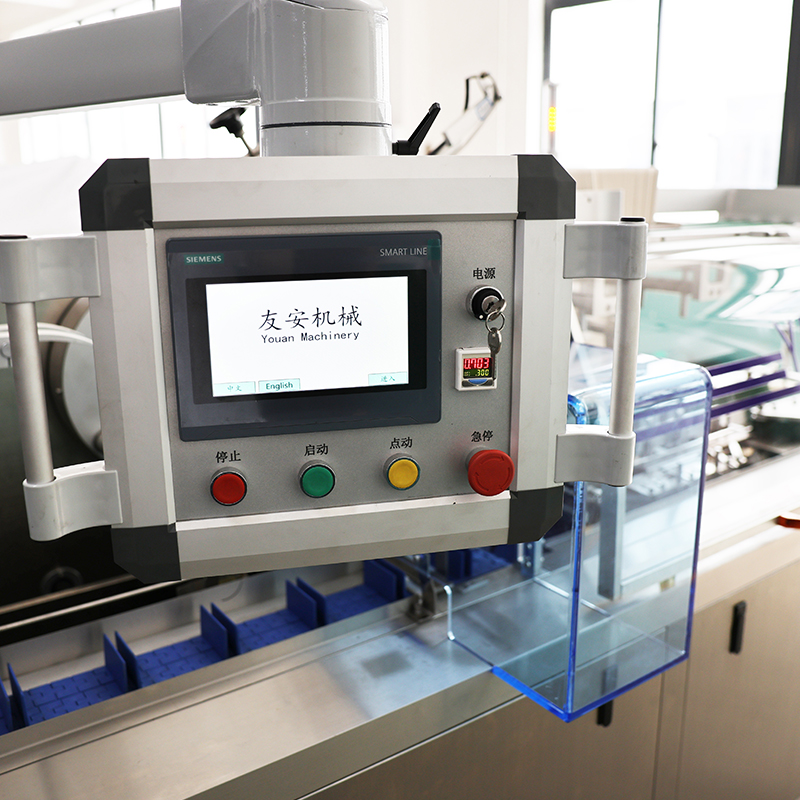

The YAZ-120 fully automatic box packing machine is a high-tech product that integrates light, electricity, gas, and machinery. Suitable for automatic packaging of capsules, tablets, blister packs with aluminum-plastic packaging, bottles, ointments, and chemical (hardware) similar items. Its working process is the transportation of medicine boards or items (adjustable for one board at a time and multiple boards); Delivery of drug instructions (can be automatically folded 1-4 times); The paper box automatically opens and transports, and the medicine board and folded instruction manual are simultaneously loaded into the paper box; And complete the complex packaging process such as automatic batch number printing and paper tongue sealing at both ends. The appearance of the machine is entirely made of high-quality stainless steel casing, and the working surface is enclosed by organic glass doors and windows. It is innovatively designed in strict accordance with the "GMP" standards of the pharmaceutical industry. The transmission part is designed with overload protection function and equipped with emergency stop device. The control system adopts a human-machine interface video screen, which is clear at a glance, ensuring the personal safety of the operator.
1.No product, no instruction manual, no paper box.
2.When there is no product or the product supply is insufficient, the machine runs idle. When the product supply is restored, it automatically runs. If the product is not in place, it will automatically stop and sound an alarm.
3.Automatic shutdown without instruction manual or paper box, continuous automatic shutdown without instruction manual.
4.Convenient replacement of different product specifications.
5.The main transmission has an overload protection device.
6.Automatically display box loading speed and qualified product output count, reject unqualified products count.

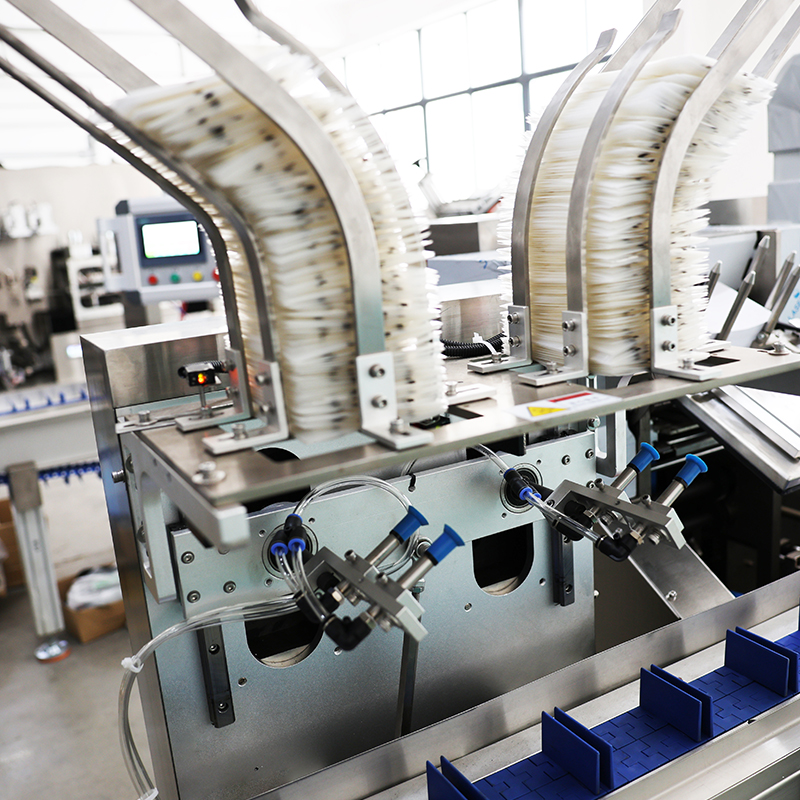

7.Extend the box storage to ensure sufficient supply of paper boxes and reduce the frequency of manual paper box placement.
8.The card box automatically stops and alarms.
9.Empty boxes or boxes with materials but no instructions will automatically reject non-conforming products.
10.The tongue lock box is not in place, automatically detected and removed (optional).
11.According to special needs, audit tracking function can be added (optional).
12.According to actual needs, the glue spraying function can be added (optional).
Technical Parameters
| Packing speed | 60-120 boxes/min |
| Paper box quality | 250-350g/㎡ [depending on the size of the cardboard box] |
| Paper box size(L×W×H) | Standard box (70-200)mm×(35-90)mm×(15-50)mm Wide box (70-200) mm×(70-120)mm×(15-50)mm |
| Quality of instruction manual | 60-70g/㎡ |
| Unfolded size of instruction manual(L×W) | (80-260)(90-190)㎜ |
| Folding range of instruction manual | 【1-4】Discount |
| work pressure | ≥0.6Mpa |
| air consumption | 8m³/h |
| power supply | 220V 50Hz |
| Main motor power | 0.75kw |
| Dimensions(L×W×H) | 3700㎜×1260㎜×1560㎜ |
| Net weight of the whole machine | About 1400kg |
